Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Tempat asal:

CINA

Nama merek:

Cartesysj

Sertifikasi:

Nomor model:

CTDCG-3-4WD

Hubungi Kami

Minta Kutipan

Rincian produk

Nama:

Dinamometer Sasis Mobil

Fitment mobil:

BMW - Eropa

Jaminan:

12 bulan

Memuat:

Nama model:

CTDCG-3-4WD

Pelabuhan:

Guangzhou

Tegangan kerja (arus):

96V×35A

Catu daya:

220V ±10% 50HZ

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 unit

Harga

$8,998.00 - $169,497.00/sets

Kemasan rincian

Pengepakan kayu

Waktu pengiriman

20-25 Hari Kerja

Syarat-syarat pembayaran

L/c, t/t

Menyediakan kemampuan

1 Set/Set per Bulan

Produk terkait

Video

CTDTG-15 Kendaraan Otomatis Chassis Dinamometer tenaga kuda Dinamometer Tiga sumbu enam roller

Dapatkan Harga Terbaik

Video

CTDCG-14 Tiga Axle Enam Roller Kendaraan Sasis Dinamometer Otomotif Dyno Mesin Daya Kuda

Dapatkan Harga Terbaik

Video

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Dapatkan Harga Terbaik

Video

CTDCG-3-4WD 4WD Mobil Kendaraan Test Lane Kendaraan Chassis Dinamometer mesin tenaga kuda satu eddy arus 1000hp satu roller bebas

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Name: Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments
Brand: Cartesy Diagnosis Technology CO.,Ltd
SKU: CTDCG-3-4WD
Price: 88.00 USD
Availability: InStock

Product description:

The 4WD horsepower dynamometer is specially used to measure the chassis dynamic performance of the2WD and 4WD vehicles. It can not only accurately measure the dynamic performance at each speed, but also simulate the road to carry out the road test of routine and multi-road of the vehicles, and can also be used for vehicle refitting and ECU debugging and calibration , etc.

Technical parameters:

Model	CTDCG-3-4WD	CTDCG-10	CTDCG-13
Maximum axle-load (kg)	3000	10000	13000
Maximum absorption power (kw)	160	250	300
Maximum braking torque (Nm)	1600	2500	3000
Maximum testing speed (km/h)	130	130	130
Drum diameter x length (mm)	∮216×1000	∮318×1000	∮373×1000
center distance (mm)	480	495	600
Inside the drum width/width (mm)	700/2700	700/2700	700/2700
Working voltage (current)	96V ×35A	96V ×35A	96V ×35A
The power supply	220V ±10% 50HZ	220V ±10% 50HZ	220V ±10% 50HZ

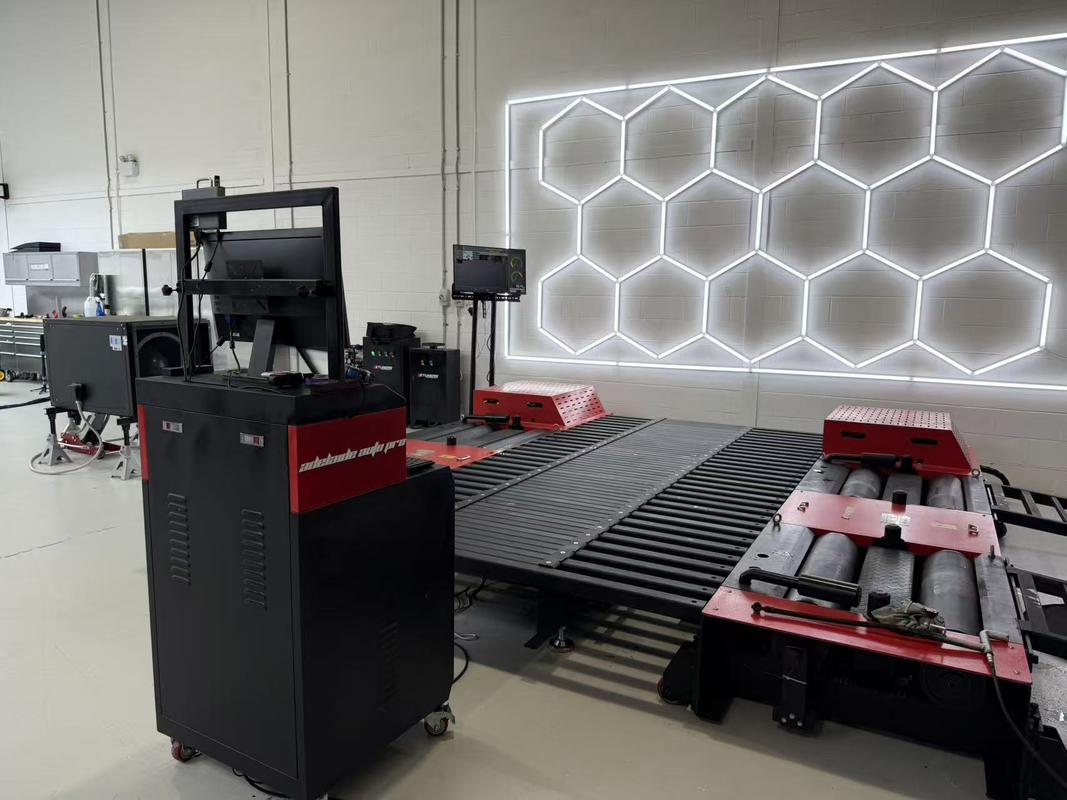

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 0

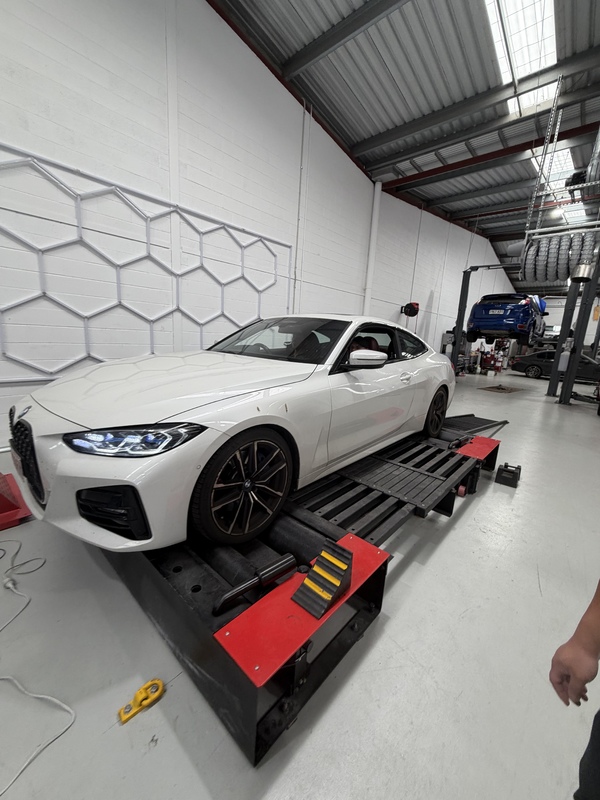

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 1

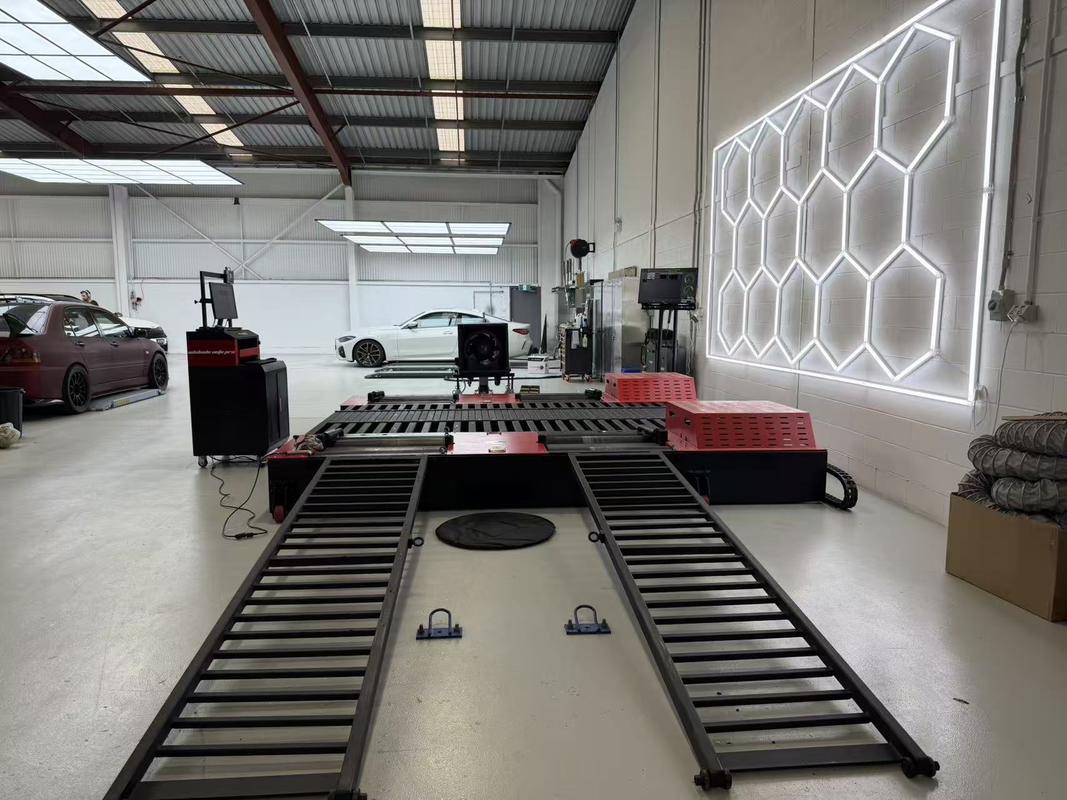

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 2

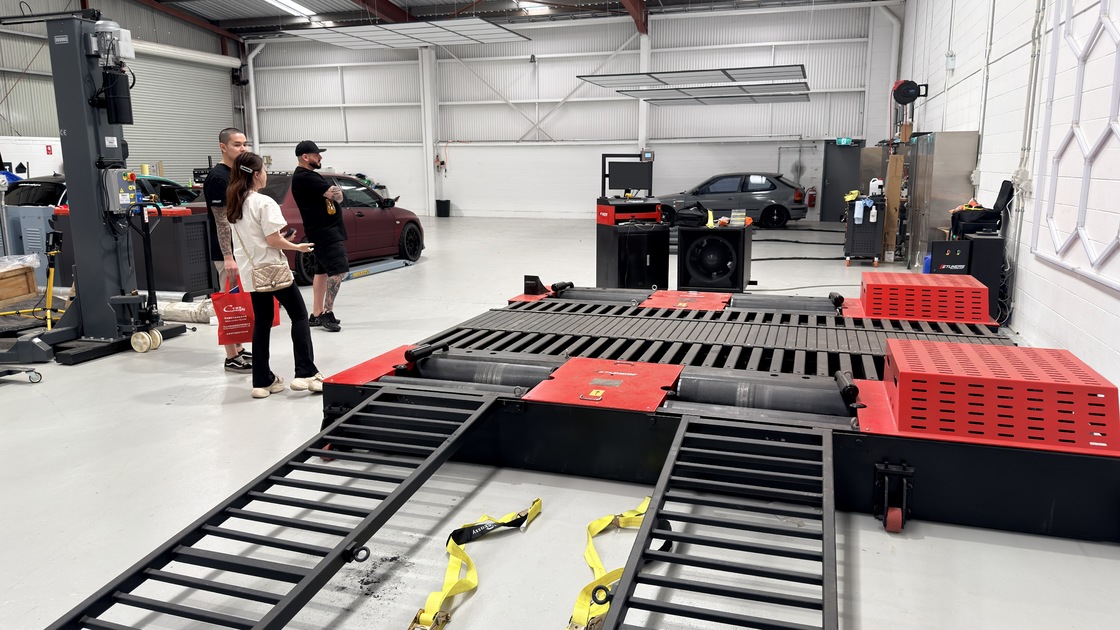

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 3

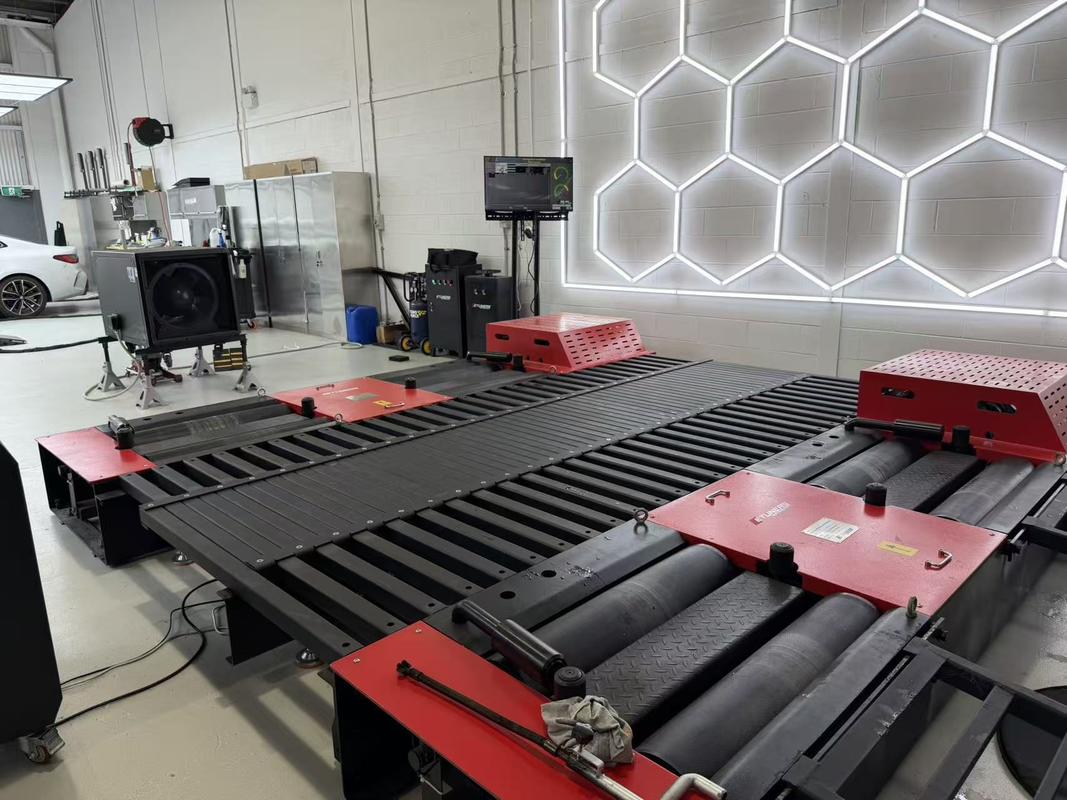

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 4

Cartesykj Australia 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 5
